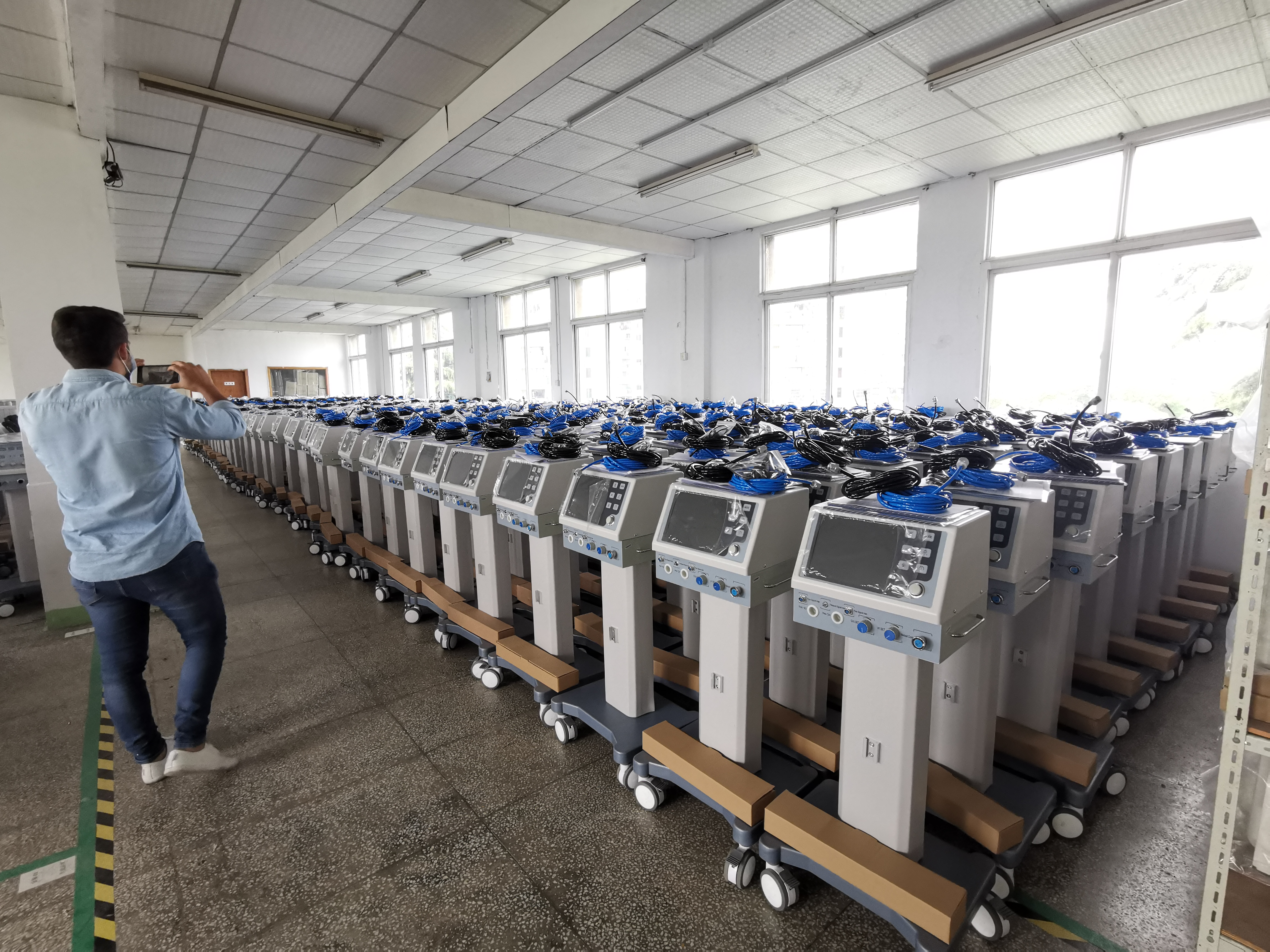

Ventilator

Features

● Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy

● Display: High visibility, wide angle LED alphanumeric data display, equipped with tactile analog parameter controls

● Equipped with high precession infrared turbine pressure and flow sensors

● Power failure support functions: Automatically converts to standby mode during AC power outages

● Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor

● Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure oxygen failure and other alarms.

● 9 Level adjustable humidifier

Specifications

Model

500

Display

LED

Ventilation Mode

A/C, IPPV, SIPPV, IMV, SIMV, MANUAL

Minute Volume

Greater than or equal to 18L

Back-up Power Supply

At least 4 hours

Tidal Volume

Adjustable range: 50-1500ml, Display range: 0-2000ml

Output Oxygen Concentration

50%

Respiratory Rate

6-60bpm

Pressure Limit

1-6kPa

Inspiratory/Expiratory (I:E) Ratio

1:1.5-1:3.0

PEEP

1-10cmH2O

SIMV Rate

1-12bpm

Inspiratory Pressure Trigger

.-4-10cmH2O

Maximum Safe Operating Pressure

6.0 kPa

SIGH

1 sigh breath in every 80-120 breaths

Airway Pressure Alarm

Upper Limit: 0.9~5.4kPa, Lower Limit: 0.5kPa

Gas Supply Requirement

280~600 kPa medical grade oxygen
