Portable X-Ray

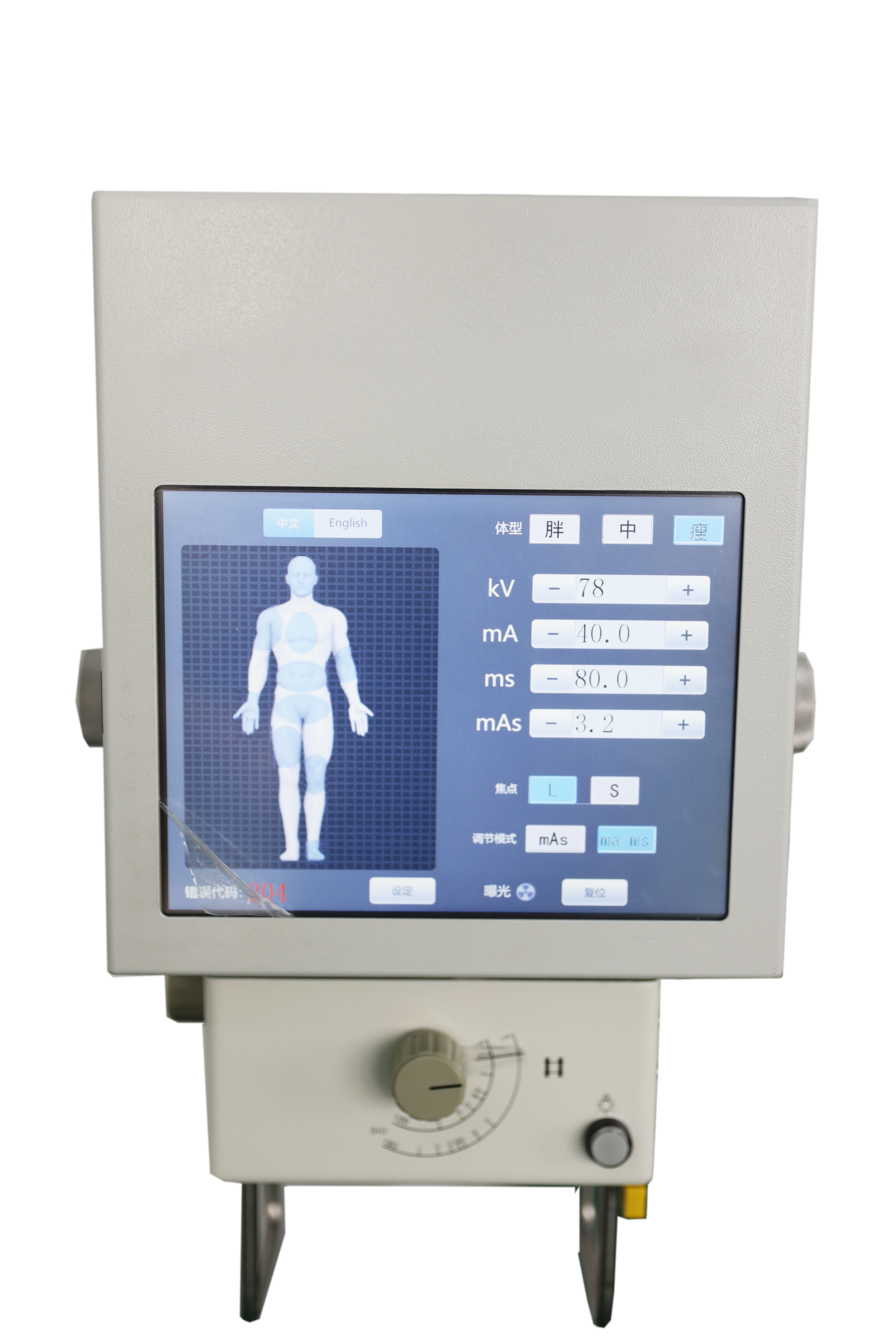

5KWPortableX-rayMachine

Features:

1.Produced by high-frequency inverter technology, stable high-voltage output can get good image quality; 2.A compact design, easy to carry and work in different regions andlocations;

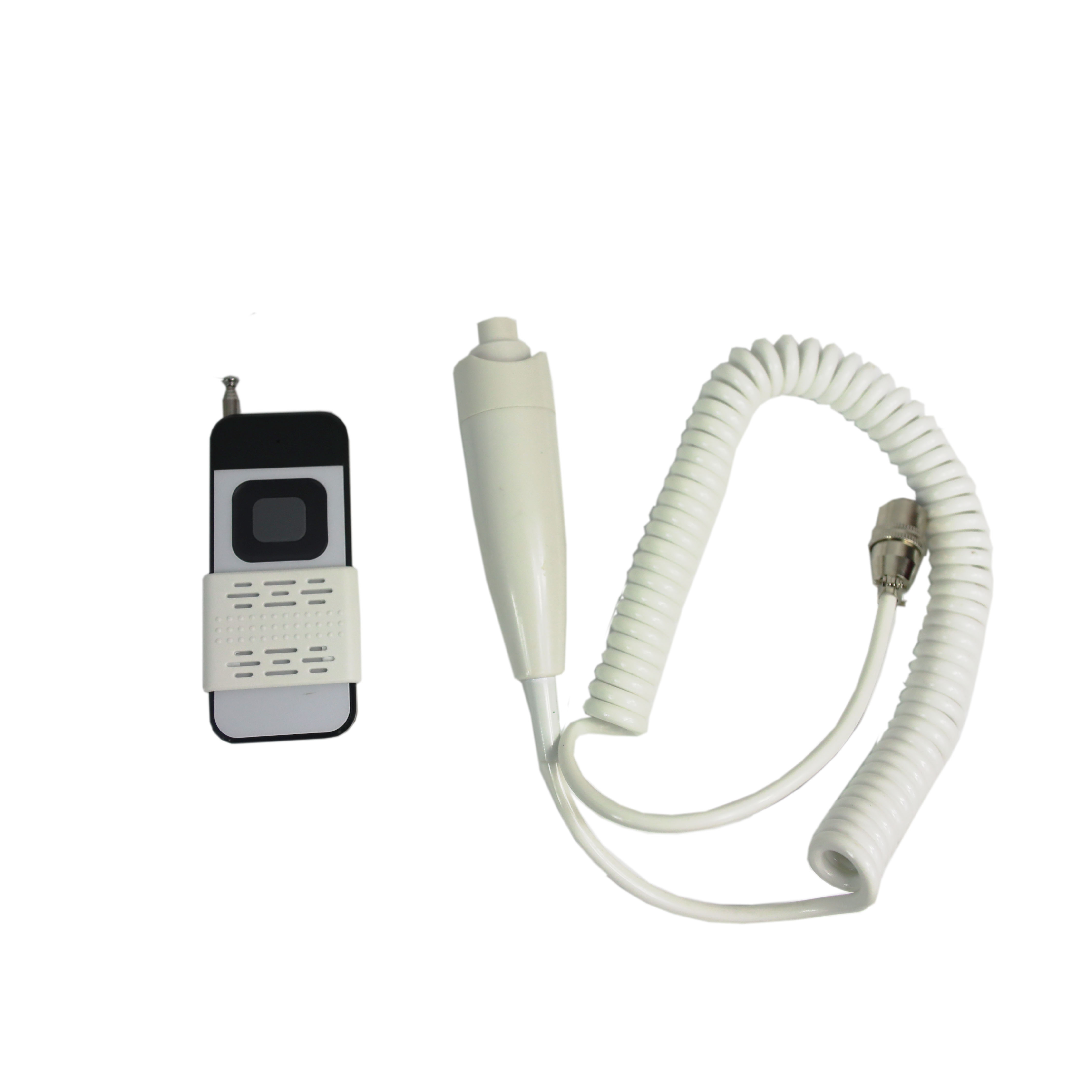

3.There are three exposure control methods: remote control, hand brake and interface buttons; 4.Fault self-diagnosis and self-protection;

5.Witha flexibledigital,interface,users can go deep into the core programming control and can adapt to different

DR detectors.


Themaintechnicalparameters:

Maximumpower

5.3kW

PhotographyKV range

40kV-125kV, 1kV step

PhotographymArange

10-100mA

mAs range

0 1-200mAs

Exposuretimerange

1 -4000ms

working frequency

100kHz±10%

Inputpowertype

220~240VAC

Host size

36.5  L×24  W×21  Hcm

Weight

15KG

Invertermethod

PWM  Pulse width modulation
