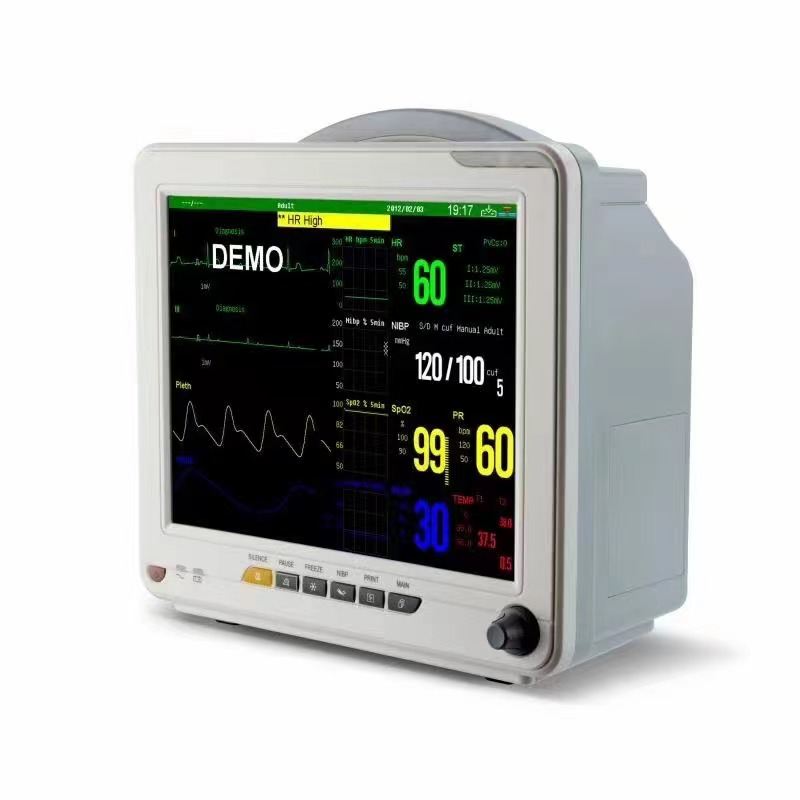

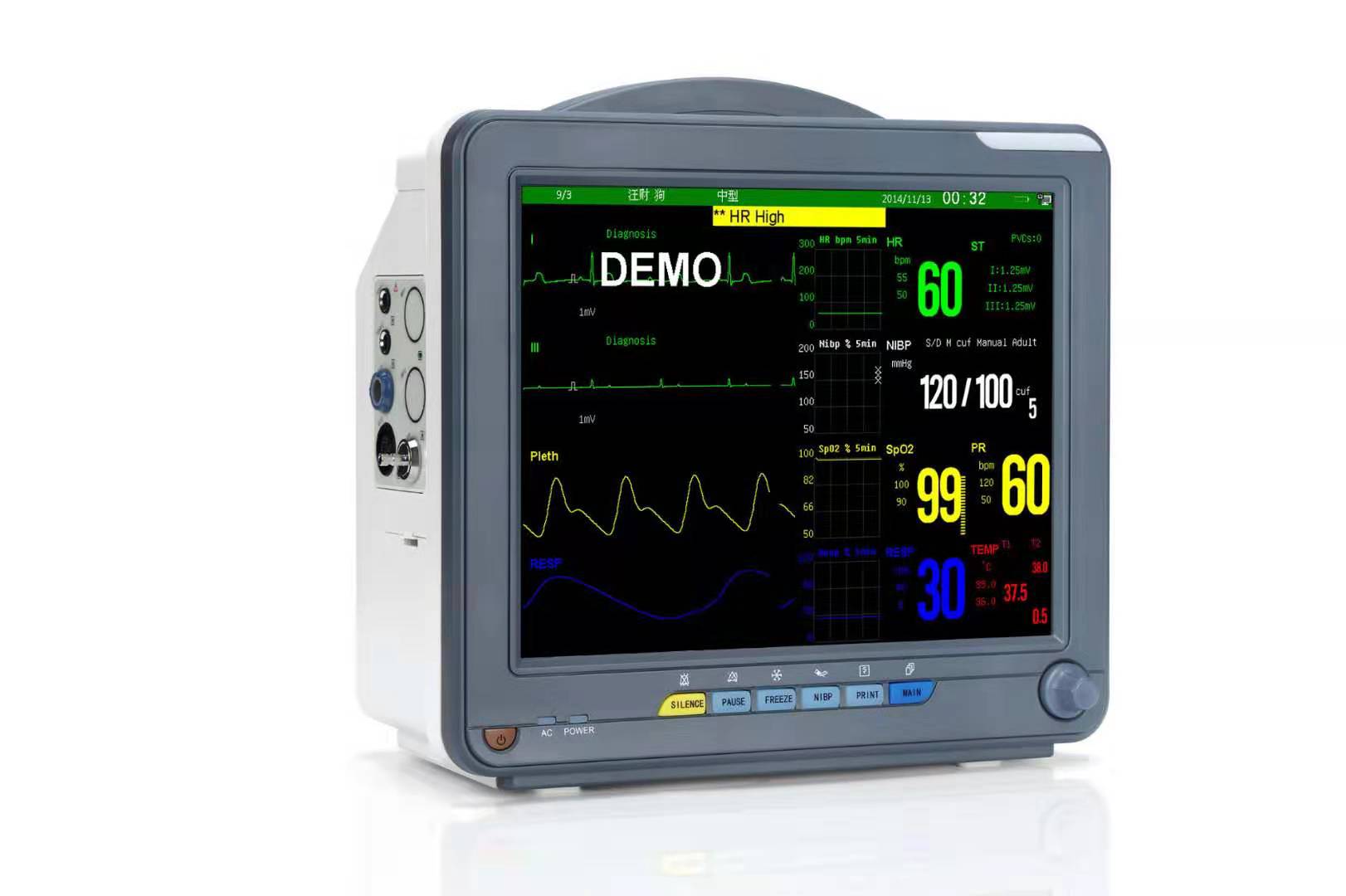

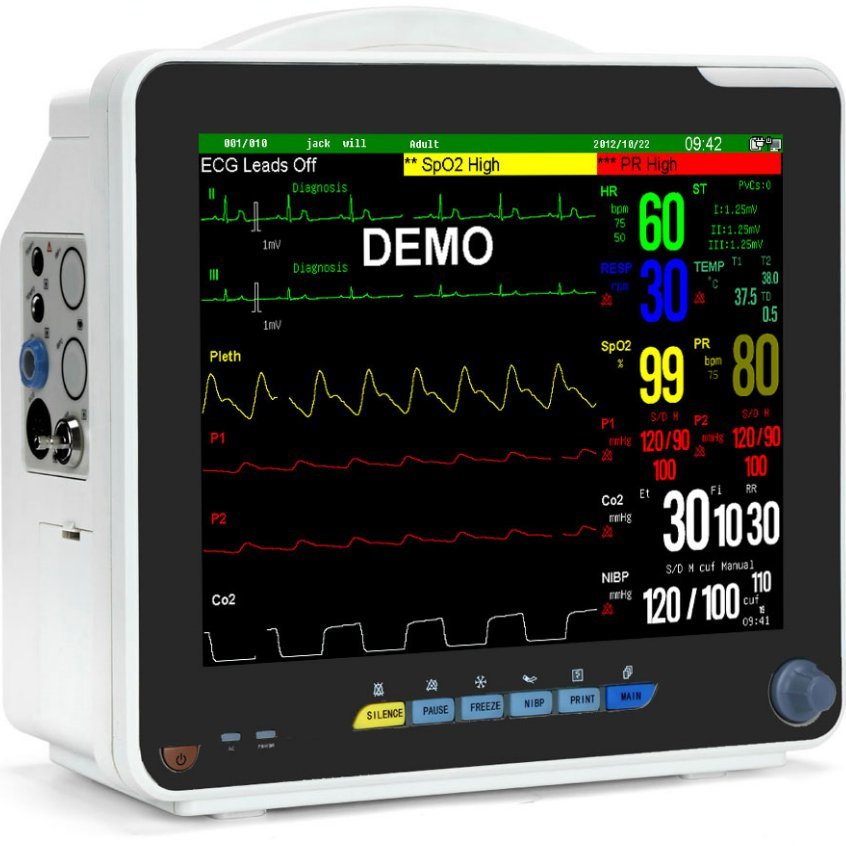

Patient Monitor
Features &Benefits:
1. 12.1” color TFT display, high resolution: 800×600dpi;
2. Full touch-screen enables intuitive operation by clicking one the specific parameters or the waveform in real time, standard configuration includes the navigation knob;
3. Real time S-T segment analysis, and ARR analysis;
4. SpO2 Pitch Tone Variation and Drug Dose Calculation;
5. Parameter waveform and characters color selectable
6. Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic
7. Standby mode for Energy saving and suspend monitoring;
8. 5-lead ECG waveforms display in phase;
9. Capture dynamic waveforms;
10. Built-in rechargeable lithium battery, and battery volume checking,
11. AC power checking
12. Efficient resistance to interference of defibrillator and HF knife;
13. SINNOR F-6 SpO2 technology, VS NELLCOR accuracy;
14. Networking capacity and TCP/IP networking platform enable abundant future upgrade
15. Time delay switch-off function keep the monitor data restart monitor;
16. Complete and flexible mounting solution for transportation and in-patient monitoring
17. Can do with SpO2, ECG, NIBP, Temp, HR, PR, AG, IBP, EtCO2, N2O. with our Strong R &D team.
18. SpO2 can work well In the condition of the low perfution of the patient
19. Can work in ICU, OR, ER.
20. Permanent suspension of the Alarm with one button Standard parameters: 5-lead ECG, SpO2,NIBP, TEMP,RESP,PR. Optional: Touch Screen, Thermal Recorder, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, FHR, FM, TOCO, Performance Specifications Display:

12.1”color TFT Rolling and refreshing waveform display Resolution: 800×600 Multi display selectable including: Large-font display Trend coexist display OxyCRG dynamic view display. Bed-to-bed view display Trace:

9 waveforms(7 ECG, 1 SPO2 and 1 RESP) Sweep speed:12.5mm/s,25mm/s,50mm/s Indicator:

Power/battery indicator light QRS beep and alarm sound Battery:

Rechargeable lead acid cell, 12v/4AH Max.24 hour for charging, 4 hours for continue working Trend:

Parameter graphic and tabular trends: 5s/piece,8 hours; 1min/piece,168 hours(24hour×7days) 5min/piece,1000 hours. Storage: NIBP: 1000 groups Alarm:

200 groups Full disclosure waveforms: 3600S SD card external storage Alarm: User-adjustable High, Medium and Low limits 3-level Audible and visual alarm
