12 chanel
ECG 12 chanel

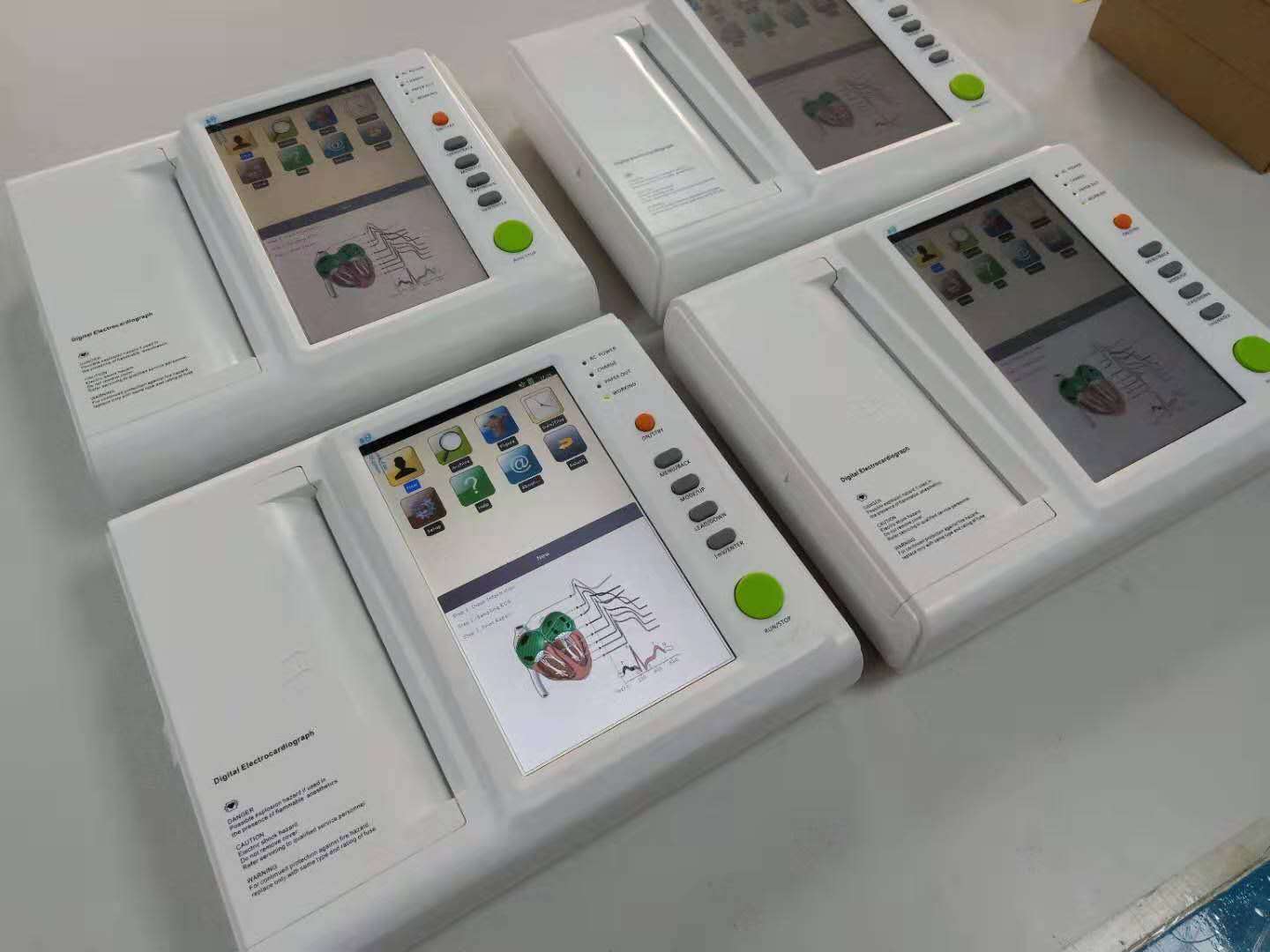

 Shape of ECG Machine

Font View                                                                                                 Side View



Profile View                                                                                  Back View

Function Features of ECG Machine

  • Modern in design, light in weight, compact in size.

  • Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.

  • 10.2'' color touch-screen, both push-button and touch operation.

  • Sensitive filters of ADS, HUM, and EMG.

  • Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
  • Automatic adjustment of baseline for optimal recording.

  • Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz.
  • Lead off & lack off paper detection function.

  • Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion.

  • Adapt to 100-240V, 50/60Hz AC power supply

  • Historical data and patient’s information can be reviewed and printed.

  • Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
  • The machine can store over 500 ECG reports in its built-in flash.

  • Standard RS232 and USB communication interfaces.

  • Connect with PC via ECG workstation software.

  • Sleep mode to save energy and extend LCD life

  • The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
  • Portable design with hidden handle, convenient to carry.

  • 7 level printing thick can be chosen.

Parameters of ECG Machine


≥ 100dB, with AC Filter

Calibrating voltage

1mV± 3%

Input circuit


Voltage tolerance

± 500mV

Input circuit current

≤ 0.1µ A

Time constant

> 3.2s



Frequent response


Operation mode


Noise level

≤ 15µ Vp-p


AC. EMG Filter


≤ 20µ V

Drift filter

Anti-Drift System

Paper speed

12.5, 25, 50mm/s (± 3%)

Input Impedance

> 50MΩ



Patient current leakage

< 10µ A


High resolution thermal printer

Specification of fuse

T1.6A 250V Ø5×20


Built-in rechargeable Li-ion battery 14.8V(4000mAh)

Recording paper

Thermal recording paper



Unit Package

  • 442mm*207mm*388mm
  • Net Weight: 4Kg
