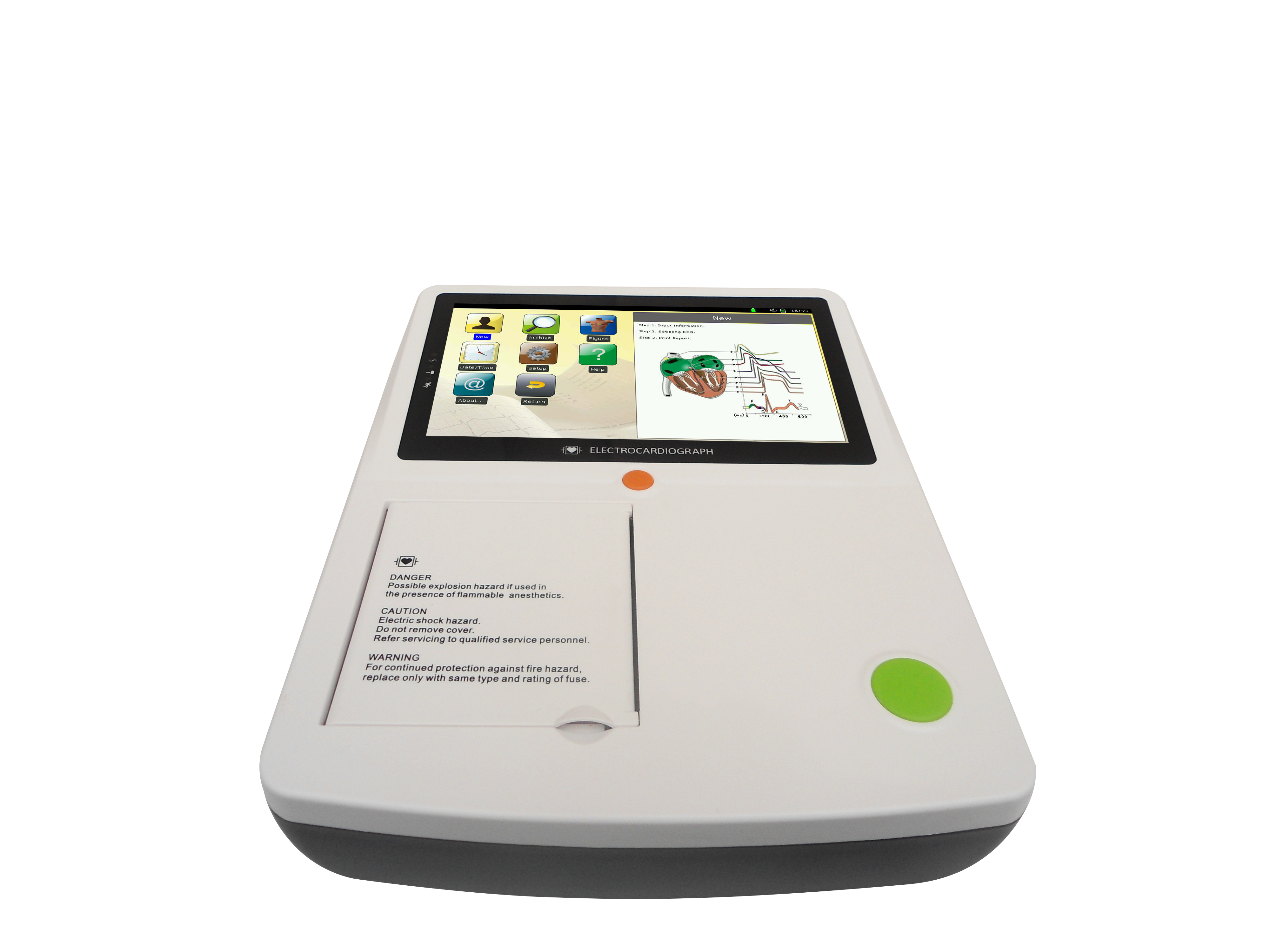

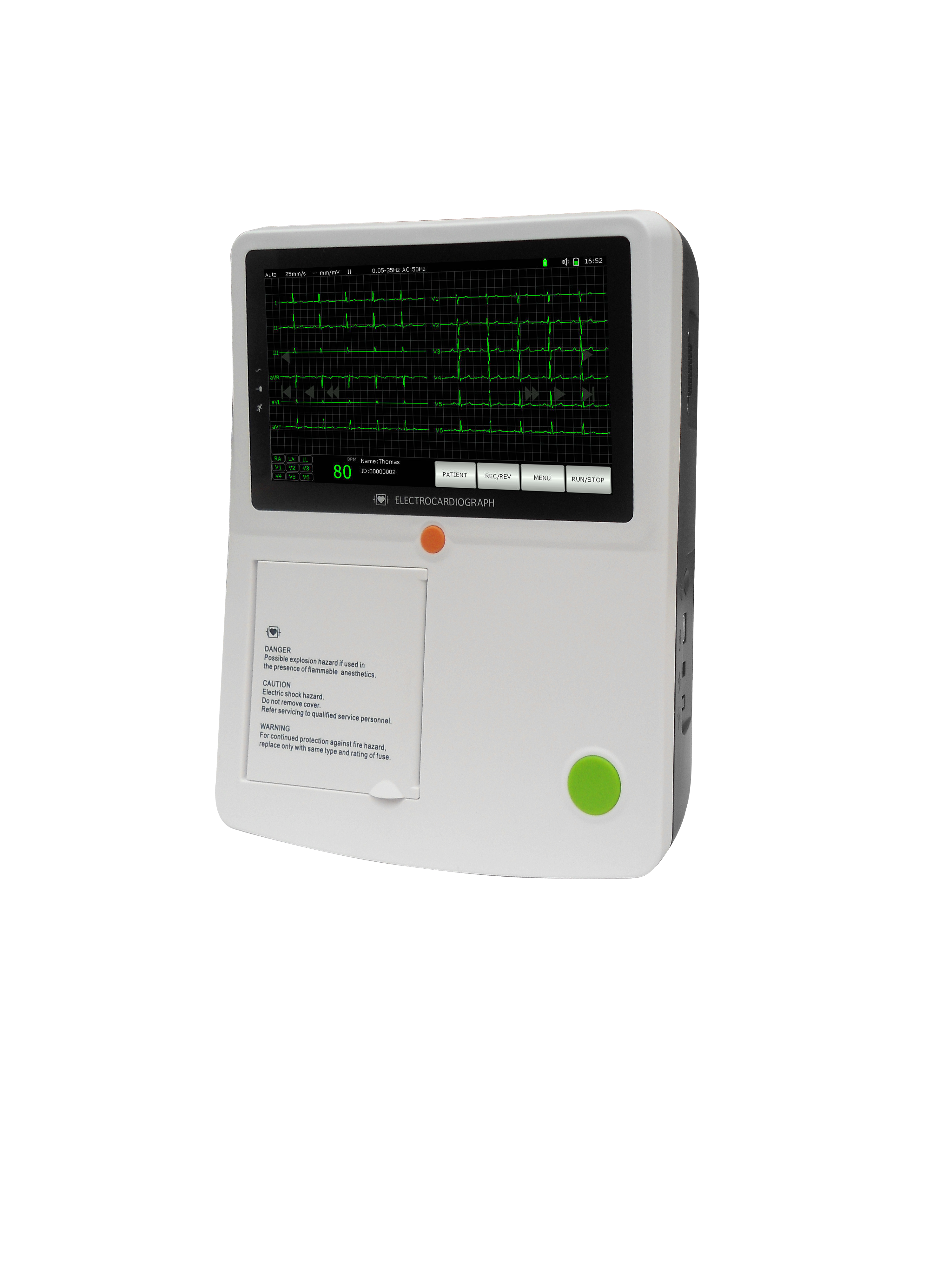

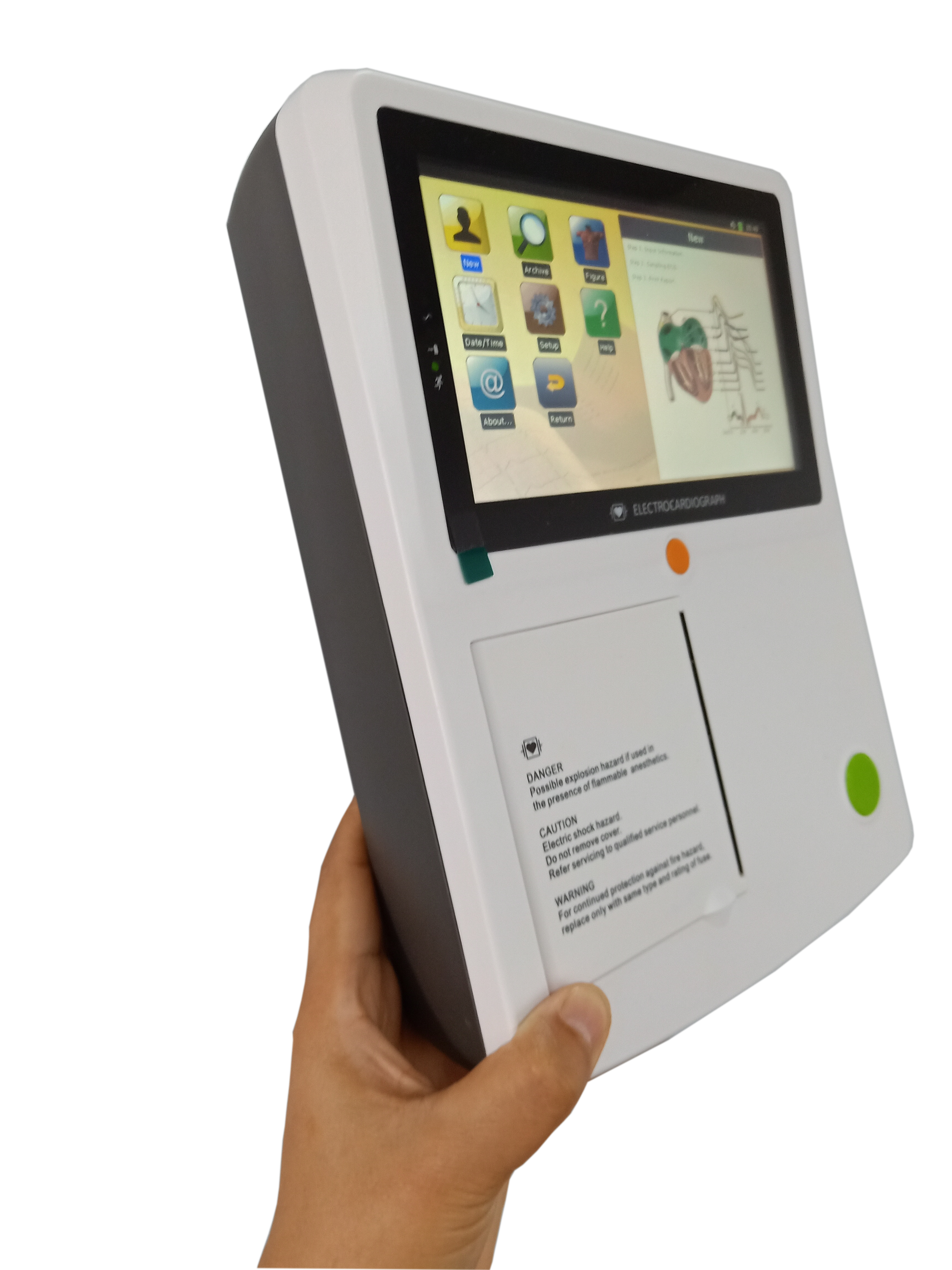

ECG 3 chanel-B

FunctionFeaturesofECGMachine

Modern indesign,light in weight, compact in size.

Simultaneouslyacquisitionof12lead,full screen display of 12 channel ECG waveforms.

7''color touch screen.

Sensitive filters ofADS,HUM, and EMG.

Automaticmeasurement,calculation,analysis,waveform  freezing.Auto-analyzeandauto-diagnosticcan reduce doctor’s burden and improve working efficiency.

Automaticadjustmenobaselineforoptimalrecording.

Thermalprintewith80mmprintpaper,synchronization print

Leadoff &lackoff papedetectionfunction.

Built-in rechargeableli-ionbatter(11.1V/4000mAh),AC/DC power conversion.

Adapt to100-240V,50/60Hz AC power supply

Historicaldataandpatient’sinformation canbreviewed andprinted.

Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.

Themachinecanstoreove400ECGreportinitbuilt-inflash.

Sleepmode to saveenergyand extend LCDlife

The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.




ParametersofECGMachine

CMRR

100dB,with AC Filter

Calibratingvoltage

1mV± 3%

Input circuit

Floating

Voltage tolerance

±500mV

Inputcircuicurrent

0.A

Timeconstant

> 3.2s

Resolution

12bit/1000Hz

Frequent response

0.05Hz~150Hz

Operationmode

Manual/Auto

Noiselevel

15µVp-p

Filter

ACEMG Filter

Threshold

20µV

Driftfilter

Anti-DrifSystem

Paper speed

12.5,25, 50mm/s (± 3%)

Input Impedance

>50MΩ

Sensitivity

10 20mm/mV

Patiencurrent

leakage

<1A

Recorder

Highresolutionthermalprinter

Specificationoffuse

T1.6A 250V Ø5×20

Battery

Built-in rechargeable Li-ion battery 11.1V(2200mAh)

Recordingpaper

Thermal recording

paper

Package

256mm*204mm*66mm

350mm*175mm*250cm

Gross Weight: 3Kg
